Materials:

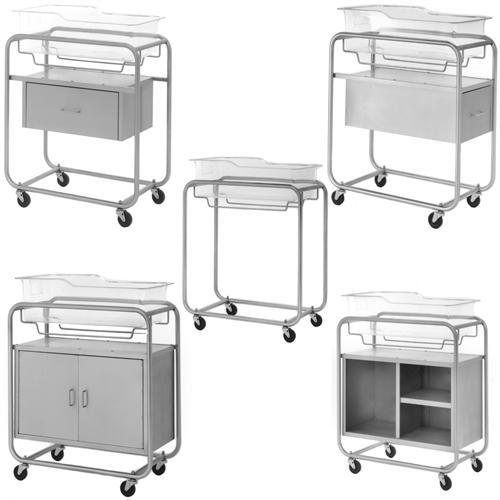

Support Structure/Chassis, Imperial style:
Frame Members: 16 gauge, 1" dia. tubular stainless steel, type 304, bright buffed finish
Basket Supports: .375" dia. rod stainless steel, type 304, bright buffed finish
Cross Members: 16 gauge, 1" dia. tubular stainless steel, type 304, bright buffed finish
Shelf: 18 gauge, stainless steel, type 304, #4 finish
Casters: 3" dia. non-marking wheel, swivel ball bearing, zinc plated
Drawer Unit:
Suspension Rails: 16 gauge, stainless steel, type 304, #4 finish
Housing:
Top: 20 gauge, stainless steel, type 304, #4 finish
Back and Sides: 20 gauge, stainless steel, type 304, #4 finish
Spreader: 20 gauge, stainless steel, type 304, 2B finish
Slide Mounting Panel: 20 gauge, stainless steel, type 304, 2B finish
Drawer:
Body and Front: 22 gauge, stainless steel, type 304, #4 finish
Pull: dull chrome Slide Members
Housing/Drawer: full extension, ball bearing, zinc plated
Cabinet:
Suspension Rails: 16 gauge, stainless steel, type 304, #4 finish
Housing:
Top: 20 gauge, stainless steel, type 304, #4 finish
Back and Sides: 20 gauge, stainless steel, type 304, #4 finish
Bottom: 20 gauge, stainless steel, type 304, #4 finish
Vertical Partition: 20 gauge, stainless steel, type 304, #4 finish
Removable Shelf: 20 gauge, stainless steel, type 304, #4 finish
Doors:
Outer Panel: 20 gauge, stainless steel, type 304, #4 finish
Inner Panel: 22 gauge, stainless steel, type 304, #4 finish
Hinges: stainless steel
Pull: dull chrome
Latch: spring-loaded nylon
Slide-out Shelves:
Suspension Rails: 16 gauge, stainless steel, type 304, #4 finish
Retaining Rail: .312" dia. rod stainless steel, type 304, bright buffed finish
Shelf: 18 gauge, stainless steel, type 304, #4 finish
Legs: "U"-shaped, 16 gauge, 1" dia. tubular stainless steel, type 304, bright buffed finish
Casters: 2" dia. non-marking wheel, swivel ball bearing, zinc plated
Fasteners:
Machine Screws: stainless steel, type 18-8
Lock Nuts: stainless steel, type 18-8, nylon insert
Rivits: stainless steel, type 18-8 |
